Bennett sampling pump operating with QED compressor/regulator

• Price: Price on application

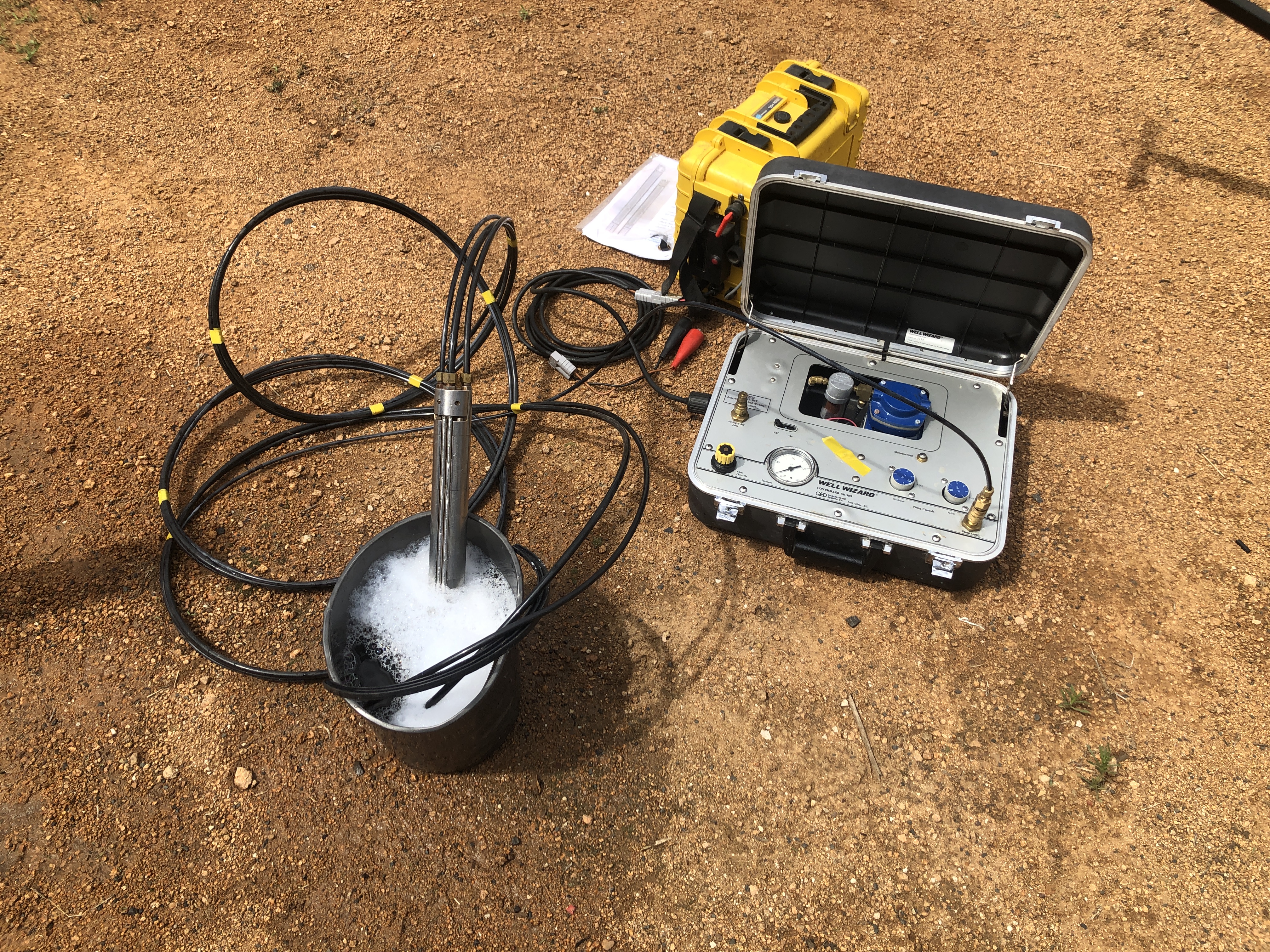

The Bennett 180-8 pump can be operated with a QED integrated compressor/regulator as shown. Although the pulsing action of the regulator is not needed and can be wound down, the pressure regulation can be helpful for low flow sampling.

The Bennett 180-8 bore water sampling pump is a most efficient and low disturbance low to medium flow sampling pump suitable for lifting water as much as 240' (80m) at 1.2 Gallon/min or 300’ (100m) at flow extinction. See https://bennettsamplepump.com/ for more details. In contrast to bladder pumps it does not need a complex flow regulator at the surface although such regulators can be handy for low flow use of the Bennett pump. The Bennett pump is operated by an air compressor operating at up to 160psi (the standard limit) and this can be powered by a 12V battery or another source. https://bennettsamplepump.com/wp-content/uploads/2023/01/Brochureemail.pdf gives further details.
