TEM Configurator
TEM Configurator is as the name suggests, a graphical user interface for observing, checking and configuring TEM metadata. It includes facilities for making type curve sets of forward models using AarhusInv64.exe (for which an indpeendent licence must be obtained from Seequent). It is code that is encompased within ResImage but is also accessible as free split off code titled 'TEMConfigurator'.

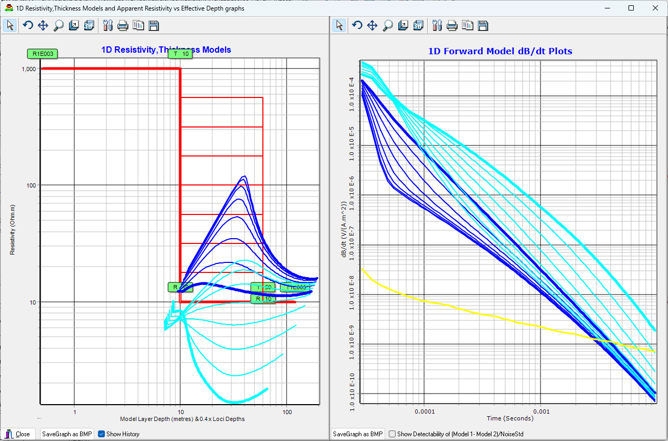

Forward modelled type curves contrast models to suggest resolvability of features. Apparent resistivity curves reveal limits of assumptions of electromagnetic behaviour.

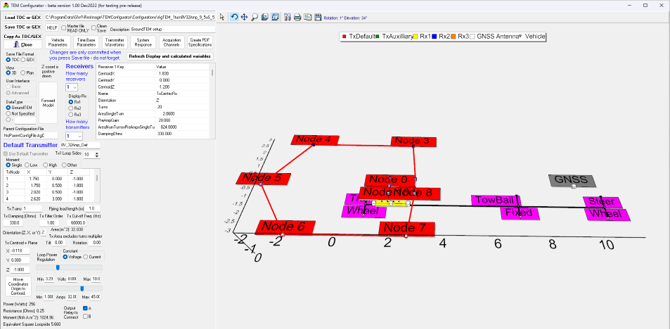

Configurations can be graphically inspected to check for hidden file errors.

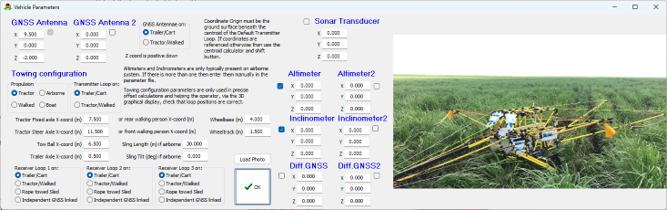

Platform dimensions can all be viewed and changed in one place.
Access slides for a 15 minute presentation on TEM Configurator here: ASEG_Hobart_15minPresentation_Allen_TEMConfigurator.pdf
An Extended Abstract on TEM COnfigurator was published in 2024 available here: ASEG_2024_TEMConfiguratorWallabyWallaroo_ExtendedAbstract_ID004.pdf
The manual and tutorials for TEM Configurator are packaged into the installer below but are also available here: TEMConfigurator_2_00_October2024_Manual_Tutorials.pdf
Access TEMConfigurator installer here: TEMConfiguratorSetupV2_00.exe
Instructions are inlcuded in this download and are accessible once it has been installed.
TEMConfigurator will store documentation and sample files in C:\GWI\ResImage\TEMConfigurator\*.* but the program file and open source delphi code will be stored in C:\Program Files (x86)\GWI\ResImage\TEMConfigurator\*.* . Note that ResImage shares files with TEMConfigurator so uninstalling one will affect the other.
Donations for use of TEM Configurator are sought. We have no funding for this project and rely entirely on donations and our own savings to write this software. We understand that your first investment will need to be in your own time and effort evaluating and learning this product, and possibly in purchase of AarhusInv64.exe from Seequent (not associated with us) if you do not already have this as part of Aarhus Workbench or as part of an educational arrangment. We expect that should you then be using it to help quote for jobs accurately and robustly, or for presenting educational courses for which there is remuneration, then a donation will be provided. To make this easier we supply a PayPal link below:
Scan the QR Code to Get PayPal Link for donating or use: PayPal Donate Link
